Take presentation to the next level with the Core P5 Tempered Glass Ti Edition open frame chassis by Thermaltake. The new Core P5 TG Ti comes with 5mm tempered glass panel plus stainless steel panel secure mechanism, four USB 3.0 data transfer ports, a motherboard tray and fully modular design that allows flexibility for 3-way placement layouts (Wall mount, Horizontal and Vertical), dual GPU layout locations: Horizontal and Vertical and placement locations for liquid cooling components. Uncover greatness with the Core P5 TG Ti’s panoramic viewing angle with its full tempered glass window to protect and present.
*A standard riser cable is included.
*The image is for reference only.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
By practicing and incorporating the idea of “maker movement” as well as 3D printing, Thermaltake designs the open frame panoramic viewing chassis as anyone can access and do his/her own mods as well as print out his/her own ideas using available liquid cooling components and manuals without boundaries.
Users can download 3D printing accessory files on 3D Makers Microsite, printing them out to do a special mod.
The Core P5 TG Ti is a true open frame case with viewing capability of showing front and back full sides. The tempered glass panels feature 5mm thickness that meets the highest standards in the industry. Moreover, unlike any other cases on the market, the enlarged glass windows permit users to fully display every RGB component of the system, and show off their dedication and skill set.
3-Way Placement Layout
The Core P5 TG Ti is designed for use in three different ways: Wall-mount, vertical, and horizontal placement. Built for customization that reflects the makers’ personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance.
Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds vertically or horizontally.
The Core P5 TG Ti enables user to freely build the system from the ground up with given modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps and enjoys installation in a breeze with Dismantlable Modular Design.
Versatile GPU & PSU Orientation
Show off your graphic card and power supply with our special design bracket. The Core P5 TG has included a standard riser cable for you to choose the way you want to build the system. Further, the Core P5 TG also has the support for vertical PSU layout when ITX motherboard is applied.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
*Thermaltake makes no representation or warranty that the included standard riser cable will be suitable for any specified computer system without further testing. If you need any technique supports, please contact Thermaltake Global Service Center.
The Core P5 TG Ti offers flexible motherboard mounting options with motherboard support tray. Users can choose the way they want to display the motherboard vertically or horizontally for outstanding cooling performance.

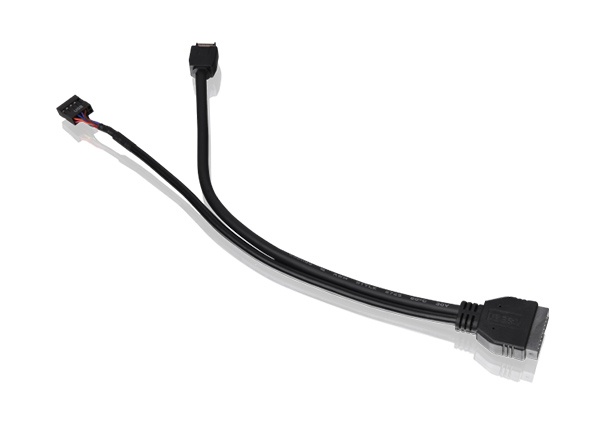

The panel is designed with four USB 3.0 data transfer ports along with a HD microphone and headset jacks, to grant direct access when needed. The Core P5 TG Ti has included a Y cable adapter for I/O USB port with USB 3.1 and USB 2.0 connector to adapt various motherboard USB setups.
*The Y cable adapter is included.
Designed for high-end gaming system compatibility, the Core P5 TG Ti supports motherboard up to standard ATX, a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 320mm in length without reservoir. Further, the modular drive racks allow users to easily install up to four 3.5”/2.5” storage devices. Users can remove the drive bays to gain maximum space for cable management up to 45mm.

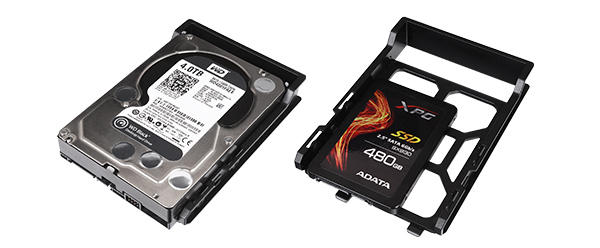

3.5” or 2.5” HDD Drive Compatible
Supreme Liquid-Cooling Support
The Core P5 TG Ti has the capability to deliver an excellent cooling efficiency, and enables users to build a complete thermal solution, including DIY/AIO liquid-cooling systems and air-cooling units. It supports up to either 480mm liquid cooling radiator, or a 140mm case fans with a long graphic card at the same time. Users can also flexibly install for pump with pump bracket. Built-in rotation motherboard tray supports all types of AIO liquid cooling system without installing AIO bracket. Unparalleled cooling performance improves overall case ventilation.
Pump bracket for flexible installation
|
||||||||||||||||||||||||
|
|||||||||||||||||||||
|
|||||||||
|
|||||||||||||||
※ Optional bracket is available for AIO installment
It’s an optional feature that wall-mounting parts are not included. See the picture on the left-hand side or download the Core P5 manual under “Support”.
| P/N | CA-1E7-00M9WN-00 |
|---|---|
| Series | Core |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 inch) |
| Net Weight | 16.3 kg |
| Color | Space Gray |
| Material | SGCC |
| Drive Bays -Accessible -Hidden |
- 1 x 3.5’’ or 2.5’’ (HDD tray); 2 x 2.5” or 3.5”(HDD Bracket) 3 x 3.5’’ or 2.5’’ (Behind the M/B tray) |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Left Side: 4 x 120mm 3 x 140mm |
| Radiator Support | Left Side: 1 x 480mm 1 x 420mm |
| Clearance | CPU cooler height limitation: 180mm VGA length limitation: 280mm (With Reservoir) 320mm (Without Reservoir) PSU length limitation: 200mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 19.1 MB
- 2018-04-12
