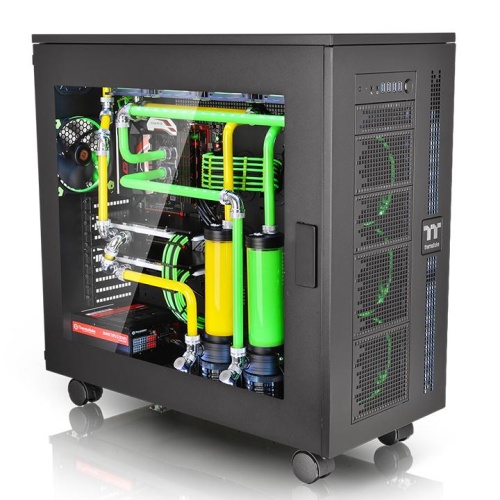

Thermaltake Core W100 Super Tower Chassis
Thermaltake presents the latest TT Premium product line which follows the core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity. Under this product line is the new Core W Series – Core W100 and Core WP100 super tower chassis with the Core P100 pedestal chassis – to deliver versatility in different superior looks.
Being as the first chassis with full assembly concept, the Core W Series is the great new challenges for makers to start from zero and experience the true “DIY” by putting every piece together to complete a high-end system. The Core W100 is the one and only chassis able to house more than twenty HDD cages and up to 10 expansion slots, which can be served as another workstation in the industrial field. With its unprecedented space for high-end hardware and liquid cooling expansion, the Core W100 supports the latest XL-ATX, E-ATX, ATX, Micro ATX, Mini-ITX motherboards, and also SSI MEB. All standard equipment of the chassis is included, what makers need to purchase is custom liquid cooling components ones need for building up aesthetically-superior water cooling systems by incorporating externally-modular upgrades for their chassis.
Download Core W100 Manual
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
DMD - Dismantlable Modular Design
Being the first chassis with a ground up build it yourself design, the Core W Series is a great new challenge for makers to start from zero by putting every piece together to complete a high-end system. With removable “3 + 10” drive racks and freely interchangeable SSD/HDD cage sections, the Core W100 offers more for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.
Workstation Concept
Being as the first super tower chassis embedded with more than 20 drive trays and 10 PCIe slots, the Core W100 can be used as another workstation for technical or scientific purposes, holding data or hosting a number of different features between computers. Compatible with the latest Intel processors and AMD/Nvidia graphics cards, the Core W100 delivers exceptional performance and creates effective work environment.
Superior Expansion
Designed for high-end gaming systems and workstation compatibility, the Core W100’s modular drive racks allow makers to easily install up to more than twenty data storage devices, a dual slot VGA of up to 635mm in length, and a tower CPU cooler as high as 200mm. Even with a high-wattage PSU stretching to 220mm in length, there is still plenty of space for cable management. Moreover, a 420mm radiator can be installed in the front of the chassis, delivering superior cooling performance.
Outstanding Ventilation
The Core W100 ’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of cooling you can dream of including DIY/AIO liquid-cooling systems and air-cooling units. Fans can be mounted anywhere inside the chassis: support for up to three 140mm fans at the front and a rear 140mm fan guarantees excellent airflow capabilities; three large 200mm fans on the top panel as well as three 140mm fans at the bottom, while there is still room for 120mm, 140mm, and 200mm fans on both sides.
Versatile Expandability
With its stacking design, the Core W100 and the Core P100 make two different combinations: by stacking Core P100 on the top or at the bottom of Core W100. The mix and match of Core WP100 offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side.
Expand the limits with the stackable Core P100 Pedestal (sold separately) allowing externally-modular upgrades for even more cooling and power capabilities.
Core WP100
Core W100
Core W100 Radiator Supporting List
| Radiator Compatibility List | |||||||||||
| 120 mm |
240 mm |
280 mm |
360 mm |
140 mm |
280 mm |
420 mm |
560 mm |
200 mm |
400 mm |
600 mm |
|
| Front | * | * | * | * | * | * | |||||
| Top | * | * | * | * | * | * | * | * | * | * | * |
| Rear | * | * | |||||||||
| Bottom | * | * | |||||||||
| Right Side | |||||||||||
Core W100 Fan Supporting List
| Fan Compatibility List | |||
| 120mm | 140mm | 200mm | |
| Front | 3 | 3 | - |
| Top | 4 | 4 | 3 |
| Rear | 1 | 1 | - |
| Bottom | 3 | 3 | - |
| Side (L/R) | 8 | 8 | 6 |
| Thermaltake Compatible Fan | |||
| 120mm | 140mm | 200mm | |
| Pure Fan Series | * | * | * |
| Luna Fan Series | * | * | * |
| Odin Fan Series | * | * | |
Core W Series Comparison Chart
| P/N | CA-1F2-00F1WN-00 |
|---|---|
| Series | Core |
| Model | Core W100 |
| Case Type | Super Tower |
| Dimension (H x W x D) | 677 x 310 x 678 mm (26.7 x 12.2 x 26.7 inch) |
| Net Weight | 22.4kg / 49.4 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Drive Bays -Accessible -Hidden |
-Accessible 3 x 5.25’’ -Hidden 6 x 3.5’’ or 2.5’’ (HDD Cage) 4 x 3.5’’ or 2.5’’ (Behind the M/B tray) |
| Expansion Slots | 10 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O Port | USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm , 3 x 140mm Top: 4 x 120mm , 4 x 140mm , 3 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 3 x 120mm , 3 x 140mm Right Side: 8 x 120mm , 8 x 140mm , 6 x 200mm |
| Radiator Support | Front: 1 x 360mm , 1 x 420mm Top: 1 x 480mm , 1 x 560mm , 1 x 600mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 140mm , 1 x 280mm |
| Clearance | CPU cooler height limitation: 200mm VGA length limitation: 470mm(with HDD rack) 635mm(without HDD rack) PSU length limitation: 180mm (With Three Bottom Fan) 220mm (With Two Bottom Fan) |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 40.9 MB
- 2015-12-30
