Thermaltake

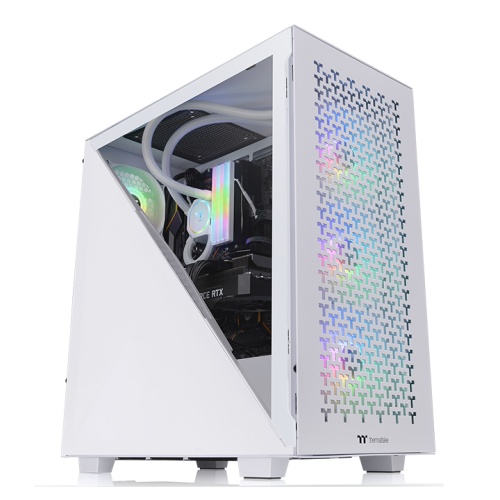

Divider 300 TG Air Snow
Showcase Your System in a Particular Way
Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 300 TG Air Snow Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing the components inside. Additionally, the Divider 300 TG Air Snow comes with two 120mm standard fans at the front and rear for maximum cooling performance. The Divider 300 TG Air Snow ATX Mid Tower Case is the next -gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.
- The image is for reference only.
The exceptional feature of the Divider 300 TG Air Snow is the two symmetrical triangular pieces comprised of a steel panel and 3mm tempered glass window on the left side. They are tool-free and can be removed seperately, giving users a little open frame flavor and additional custimization option when builing in the PC case. The Tempered glass window is thicker and more scratch-resistant compared to standard acrylic.
The Divider 300 TG Air Snow comes with one large airflow-optimized mesh panel at the front for massive cooling performance.
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. The Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.
- The image is for reference only.
The Divider 300 TG Air Snow has well-designed removal magnetic fan filters on the top and inner right side. At the front and base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
- The image is for reference only.
The cooling performance of the Divider 300 TG Air Snow is excellent. The front mesh panel and the vent between the two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the top and right side, there are venting mechanisms for air intake or exhaust depends on the user’s overall PC layout design.
- The image is for reference only.
To let our customers better understand the thermal performance of the Divider 300 TG Air Snow ATX Mid Tower Case, we placed an AIO Liquid Cooler at the front and ran a test system. It shows that the temperature around the front area is really low at idle and at full-load, with no obstructions and restricted airflow. For the test we used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running simultaneously for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.
-
Idle
Full-load
Specification
| Motherboard | ASUS ROG MAXIMUS XI HERO |
|---|---|
| CPU | Intel® Core™ i5-9600K (TDP 95W) |
| GPU | MSI GeForce RTX™ 3090 VENTUS 3X 24G OC |
| RAM | Floe RC240 CPU & Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G) |
| PSU | Toughpower GF2 ARGB 650W |
| CPU Cooler | Floe RC240 CPU & Memory AIO Liquid Cooler |
| Fans | Pure ARGB 120mm fans up to 4 (Front x 3, Rear x 1) |
| Software | AIDA64 Extreme Portable, FurMark ASUS ROG Edition |
|---|---|
| Full load | 30 min |
| Camara | Testo 885-2 Thermal Imaging Camera |
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0 and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.
Strip your case down to the bones and install elements when and as you need them with our modular design. The Divider 300 TG Air Snow features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● |
| Right | ● | ● | - | - | - |
| Rear | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 1 | 1 | - |
| Right | 2 | - | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
| P/N | CA-1S2-00M6WN-02 |
|---|---|
| Series | Divider |
| Model | Divider 300 TG Air Snow |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 475 x 220 x 461 mm (18.7 x 8.66 x 18.1 inch) |
| Net Weight | 8.18 kg / 18.03 lbs. |
| Side Panel | Tempered Glass x 1 |
| Color | White |
| Material | SPCC |
| Cooling System | Front(intake): 120 x 120 x 25 mm Standard fan (1000rpm, 16 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1 |
| Drive Bays -Accessible -Hidden |
2 x 3.5”, 5 x 2.5” or 7 x 2.5 |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 1 x 120mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right (M/B Side): 1 x 240mm (vertical-installed GPU recommended), 1 x 120mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 145mm VGA length limitation: 360mm(With radiator) 390mm(Without radiator) PSU length limitation: 180mm (With HDD Cage) 220mm(Without HDD Cage) |
