Empowering with Efficiency and Stability

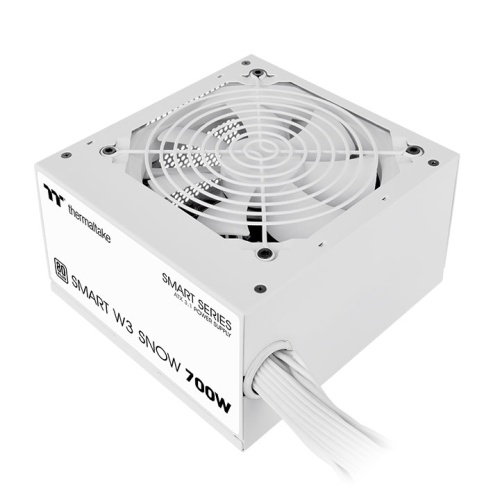

The Smart W3 Snow is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart W3 Snow is fully compatible with ATX 3.1 specifications, which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
ATX 3.1
ATX 2.0
Total power excursion
Excursion
Excursion
Stay Quiet
Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 Snow is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100-240V～
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
18A |
18A |
58.33A |
0.3A |
3A |
| Max Output Power |
110W |
700W |
3.6W |
15W |
|
| Total Power |
700W |
||||
Non-Modular Soft Cable Design
Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |
|
X 1 | 600mm |
| ATX 12V
(4+4Pin) |
X 2 |
|
X 1 | 650mm+150mm |
| PCIe
(6+2Pin) |
X 2 |
|
X 1 | 500mm+150mm |
| SATA (5Pin) |
X 4 |
|
X 1 | 500mm+150mm+150mm+150mm |
| Peripheral (4Pin) | X 4 |
|
X 1 | 500mm+150mm +150mm+150mm |
Built-in Industrial Grade Protection
To protect the hardware, Smart W3 Snow is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
-
OCP
Over Current Protection
-
OVP
Over Voltage Protection
-
UVP
Under Voltage Protection
-
OPP
Over Power Protection
-
SCP
Short Circuit Protection
-
OTP
Over Temperature Protection
80 PLUS Certified and Intel C6/C7 States Ready
Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS®. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-SPW-0700NNFAWU-W |
|---|---|
| watts | 700W |
| Model | SP3-700AH2NLW |
| Max. Output Capacity | 700W |
| Color | White |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 12A - 6A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 5°C to + 40°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CB/FCC/cTUVus/ICES/UKCA/CE/LVD/RCM |
| PCI-E 6+2pin | 2 |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
