Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass RGB Edition Full Tower Chassis features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with three 140mm Riing RGB fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.
- The image is for reference only.
The chassis comes with four 5mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. Swing Doors on either side allow user easy access to the internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.
The View 71 TG RGB comes with full modular drive cages that allow easy installation/removal and maximizes the interior space for custom cooling loops. Above all, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs.
Specially designed with dual GPU placement options, the View 71 TG RGB has support for both vertical and horizontal graphics card layouts. With dual PCI-E slot designs (and an optional PCI-e riser cable), the included riser GPU support bracket can not only prevent the graphics card from sagging, but also help reduce the overall weight on the motherboard.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions. This is an extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
Learn More
- The image is for reference only.
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
- The image is for reference only.
- Recommend to use Thermaltake’s all-in-one liquid cooler when applying vertical AIO radiator mounting.

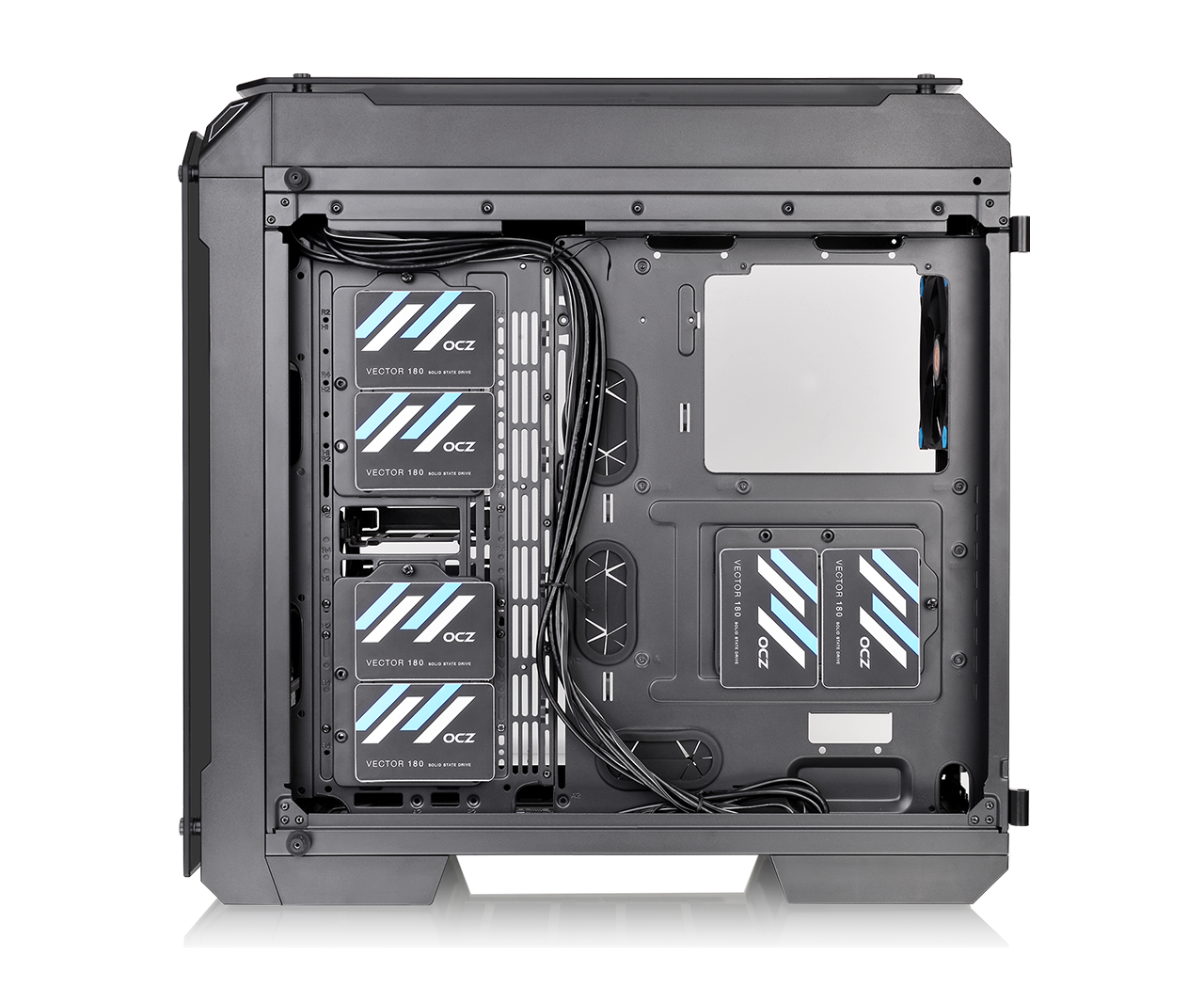

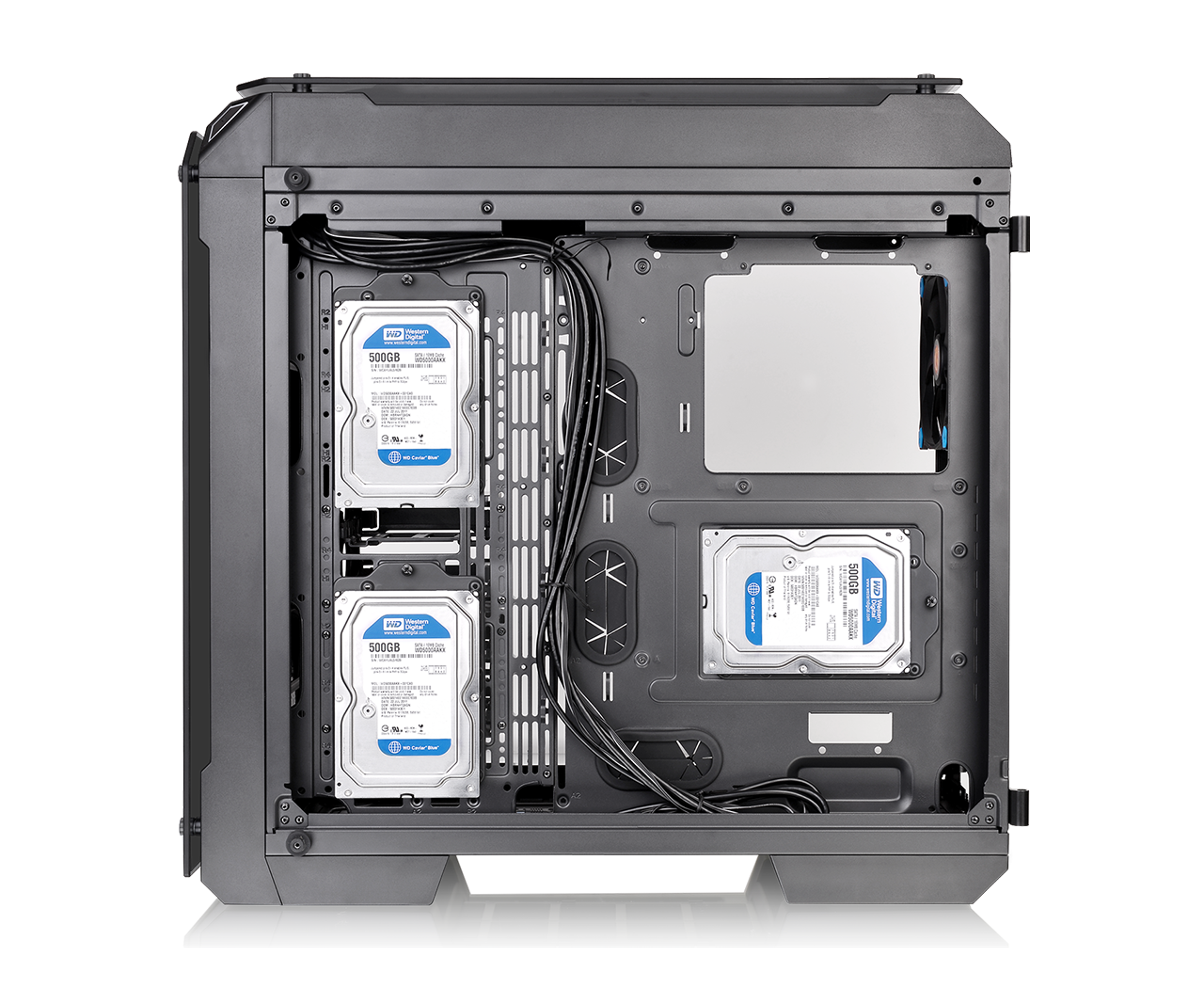

Innovative 3.5” and 2.5” tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely interchange the 3.5” and 2.5” storage drives to secure and store with ease.
Moreover, the View 71 TG RGB Edition maximizes airflow with three built-in 140mm Riing RGB fans with two at the front and one at the rear. Options for up to three 120mm front fans, combined with two bottom mount 120mm fan locations and top rails to mount up to three 120mm or 140mm fans.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- 420mm
The View 71 TG RGB Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | ● | ● |
| Rear | ● | - | - | ● | - | - |
| Right | ● | ● | ● | ● | ● | ● |
| Bottom | ● | ● | - | - | - | - |
(Water 3.0 and Floe series)
| Performer | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | ● | ● | ● |
| Rear | ● | ● | - | - | ● | - |
| Right | ● | ● | ● | ● | - | - |
| Bottom | - | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 3 | 3 | - |
| Rear | 1 | 1 | - |
| Bottom | 2 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| LUNA FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
| P/N | CA-1I7-00F1WN-01 |
|---|---|
| Series | View |
| Case Type | Full Tower |
| Dimension (H x W x D) | 577 x 274 x 592 mm (22.7 x 10.8 x 23.3 inch) |
| Net Weight | 19.1 kg / 42.10 lb |
| Side Panel | 5mm Tempered Glass x 4 (Left & Right & Front & Top) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA) Front (intake) : 140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA) x2 |
| Drive Bays -Accessible -Hidden |
- 2.5” x 4 or 3.5”x4 (HDD Rack) 2.5”x 6 or 3.5” x 3 |
| Expansion Slots | 8+2 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm , 2 x 140mm Top: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
| Radiator Support | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm, 1 x 140mm Right: 1 x 360mm, 1 x 420mm Bottom: 1 x 240mm |
| Clearance | CPU cooler height limitation: 190mm VGA length limitation: 310mm(With HDD Rack) 410mm(Without HDD Rack) PSU length limitation: 220mm (Without Bottom Fan) |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 15.5 MB
- 2017-07-28
-
Riing 14 RGB Manual
- Multi-language
- 468 KB
- 2017-07-28
